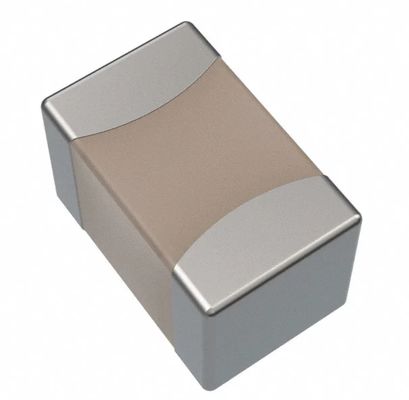

JMK212BJ226KG-T 22μF MLCC 6.3V Rating X5R Dielectric 0805 Case 10% Tolerance
Product Description
The JMK212BJ226KG-T is a high-capacitance multilayer ceramic capacitor (MLCC) that delivers a substantial 22µF value in the compact and widely used 0805 (2012 metric) case size. It is rated for a 6.3V operating voltage and utilizes an X5R dielectric, which provides stable performance over a common temperature range of -55°C to +85°C.
This capacitor offers high volumetric efficiency for space-constrained PCB designs. Designed for standard surface mount assembly processes and compliant with RoHS standards, it's a versatile solution for general-purpose decoupling and filtering tasks.
Features
- High Capacitance: 22 µF
- Rated Voltage: 6.3 V
- Dielectric: X5R
- Case Size: 0805 (2.0mm x 1.25mm)
- Tolerance: ±10%
- Temperature Range: -55°C to +85°C
- High Capacitance Density: Ideal for compact designs
- Compliance: RoHS
Applications
- Power Supply Decoupling/Bypassing: Critical for stabilizing power rails and suppressing noise on low-voltage ICs
- Consumer Electronics: Smartphones, tablets, laptops, digital cameras, and wearables
- DC-DC Converter Output Filtering: Smooths output ripple of switching regulators
- General Purpose Filtering: Used in automotive infotainment, telecommunications, and industrial control modules
Technical Specifications
| Category |
Capacitors Ceramic Capacitors |
| Manufacturer |
Taiyo Yuden |
| Series |
M |
| Packaging |

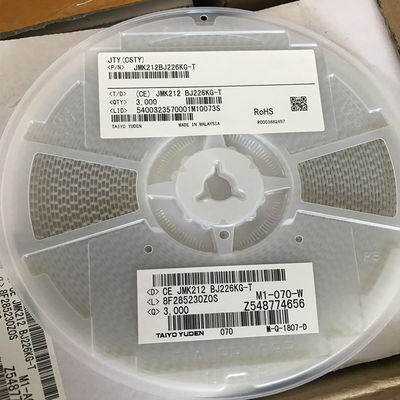

Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status |
Not For New Designs |
| Capacitance |
22 µF |
| Tolerance |
±10% |
| Voltage - Rated |
6.3V |
| Temperature Coefficient |
X5R |
| Operating Temperature |
-55°C ~ 85°C |
| Mounting Type |
Surface Mount, MLCC |
| Package / Case |
0805 (2012 Metric) |
| Size / Dimension |
0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Thickness (Max) |
0.053" (1.35mm) |
| Base Product Number |
JMK212B |
