High-Capacitance 1µF X7R MLCC in 1206 Case 50V Rated Wide-Temperature Stability Low ESR/ESL High Ripple Handling Robust Performance for Power Filtering and Industrial Decoupling Applications
Features
-
High Capacitance & Voltage Rating: 1µF at 50V provides significant energy storage and filtering capability for higher-power circuits.
-
Excellent Temperature Stability (X7R): Maintains stable performance across a wide temperature range, ideal for industrial and automotive environments.
-
Low Equivalent Series Resistance (ESR/ESL): Ensures effective high-frequency noise suppression and efficient power delivery.
-
Good Ripple Current Handling: Capable of handling power supply ripple in filtering applications.
-
High Reliability & Robustness: Suitable for demanding applications and compatible with standard reflow soldering processes.
-
Lead-Free & RoHS Compliant: Manufactured to meet global environmental standards.
Applications
-
Industrial Power Electronics: Input/output filtering in AC-DC power supplies, DC-DC converters, motor drives, and programmable logic controllers (PLCs).
-
Automotive Systems: Power conditioning in engine control units (ECUs), advanced driver-assistance systems (ADAS), and infotainment.
-
Renewable Energy & Telecom Infrastructure: Filtering and smoothing in solar inverters, power distribution, and base station power modules.
-
High-Voltage Rail Decoupling: Local bulk charge reservoir for ICs and modules operating on 12V, 24V, or 48V rails.
-
General-Purpose Power Management: A versatile and reliable component for demanding filtering and buffering tasks.
Description

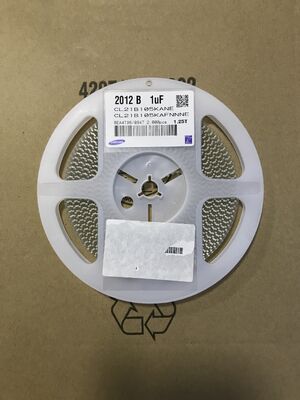

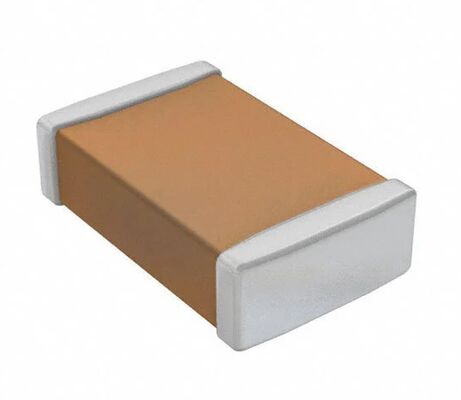

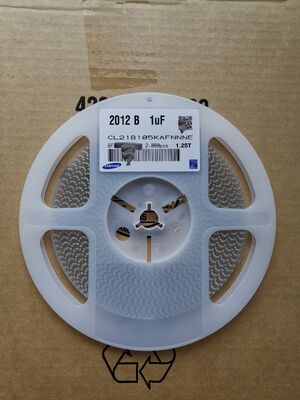

The CL21B105KAFNNNE is a robust, surface-mount multilayer ceramic capacitor (MLCC) in a 1206 package (3.2mm x 1.6mm). It offers a substantial 1µF (105) capacitance with a high 50V rated voltage. Utilizing a stable X7R temperature characteristic dielectric (±15% capacitance change from -55°C to +125°C), this component is designed to provide reliable performance and high capacitance in a moderate footprint, making it suitable for demanding power integrity applications.
Technical Specifications
|
category
|
|
|
|
manufacturer
|
|
|
|
series
|
|
|
|
wrap
|
Tape and Reel (TR)
Shear Belt (CT)
Digi-Reel® won the custom tape and tape
|
|
|
Part status
|
|
|
|
capacitance
|
|
|
|
Tolerance
|
|
|
|
Voltage - Rating
|
|
|
|
temperature coefficient
|
|
|
|
Operating temperature
|
|
|
|
characteristic
|
|
|
|
grade
|
|
|
|
apply
|
|
|
|
Failure rate
|
|
|
|
Mounting type
|
|
|
|
Package/Enclosure
|
|
|
|
Size / Dimensions
|
0.079" L x 0.049" W (2.00mm x 1.25mm)
|
|
|
Height - Mounting (max)
|
|
|
|
Thickness (max)
|
|
|
|
Lead spacing
|
|
|
|
Lead style
|
|
Drawing
