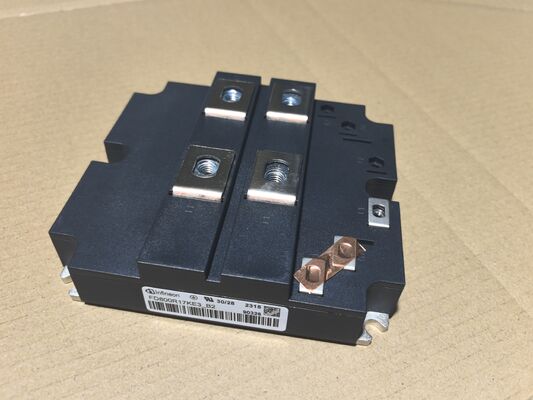

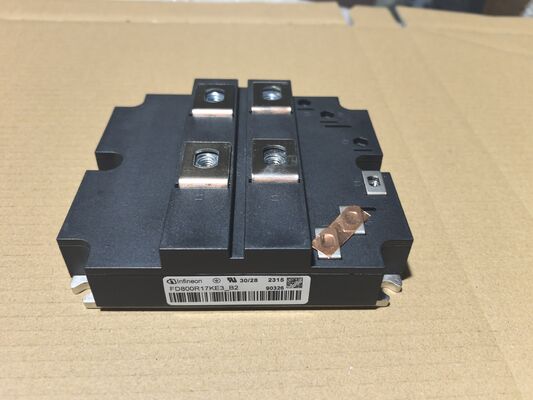

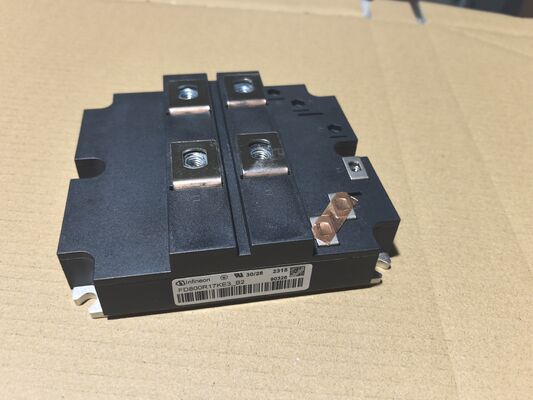

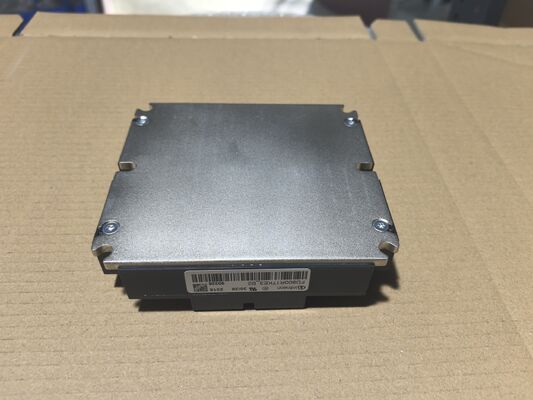

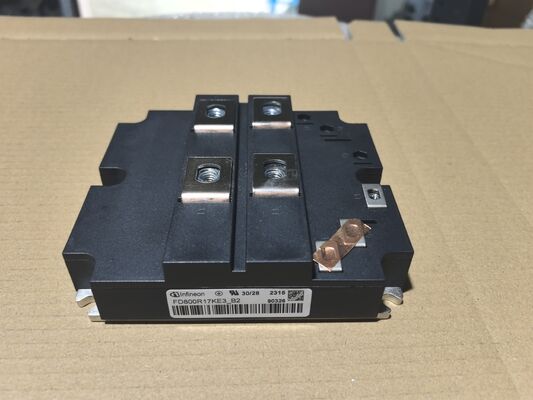

FD800R17KE3_B2 1700V/800A IGBT Module Press-Fit Technology Low VCE(sat) High Speed Switching Low Loss Isolated Baseplate NTC Sensor Industrial Grade for Traction & Heavy Industrial Drives
Features
-
Ultra-High Power Rating: 1700 V / 800 A
-
Configuration: Dual IGBT
-
Low Saturation Voltage: VCE(sat) for minimal conduction losses.
-
Low Switching Losses: Enables efficient operation in high-power designs.
-
Press-Fit Contact Technology: Enhances reliability and power cycling capability.
-
Isolated Baseplate: Ensures electrical safety and simplifies cooling system design.
-
Built-in NTC Thermistor: For real-time thermal monitoring and protection.
-
High Ruggedness: Excellent short-circuit and overload withstand capability.
Applications
-
Traction Drives: Main propulsion inverters for electric and hybrid locomotives, trams, and heavy-duty mining vehicles.
-
Heavy Industrial Motor Drives: For controlling very large AC motors in mining, metal rolling, and marine propulsion systems.
-
High-Power Wind Turbine Converters: Used in the generator-side and grid-side converters of multi-megawatt wind energy systems.
-
High-Voltage DC Transmission (HVDC): STATCOMs and other power quality systems for electrical grid infrastructure.
-
Industrial UPS and Power Supplies: Forms the core of the inverter stage in megawatt-class uninterruptible power supplies for critical infrastructure.
Description
The FD800R17KE3_B2 is an ultra-high-power dual IGBT module engineered for the most demanding high-voltage and high-current applications. With an exceptional rating of 1700V and 800A, it sets the benchmark for performance in megawatt-scale power conversion. The module is optimized for maximum efficiency, featuring a very low collector-emitter saturation voltage (VCE(sat)) and low switching losses, which are critical for minimizing energy dissipation in high-power systems.
A key feature of this module is its press-fit contact technology, which provides a robust, solder-free interconnection for enhanced power cycling capability and long-term reliability. It includes a built-in NTC thermistor for precise temperature monitoring and features a fully isolated baseplate for safe and efficient thermal management. Its industrial-grade construction ensures superior ruggedness and stability under the most extreme operating conditions.
INFORMATION
-
Configuration
Chopper
-
Dimensions (length)
130 mm
-
Dimensions (width)
140 mm
-
Features
Enlarged Diode
-
Housing
IHM
-
IC(nom) / IF(nom)
800 A
-
IC max
800 A
-
Qualification
Industrial, Traction
-
Technology
IGBT3 - E3
-
VCE(sat) (Tvj=25°C typ)
2 V
-
VCES / VRRM
1700 V
-
VF (Tvj=25°C typ)
1.55 V
-
Voltage Class max
1700 V
Drawing
