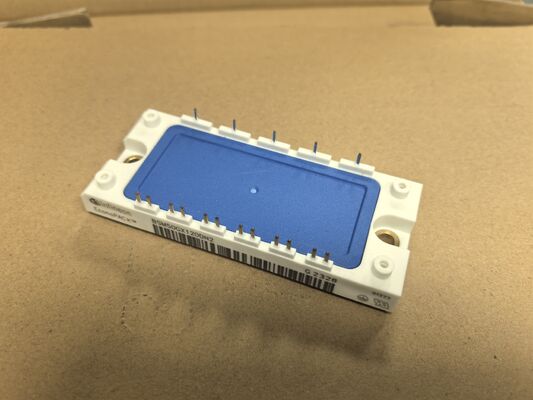

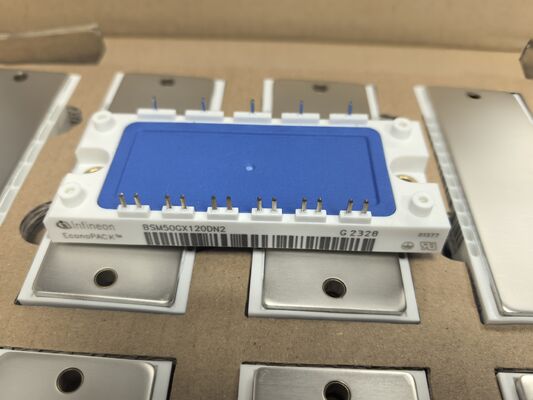

BSM50GX120DN2 1200V/50A IGBT Module Dual Configuration Low VCE(sat) High Speed Switching Low Loss Built-in NTC Isolated Baseplate Industrial Grade for Motor Drives & Solar Inverters
Features
-
Voltage/Current Rating: 1200 V / 50 A
-
Configuration: Dual IGBT
-
Low Saturation Voltage: VCE(sat) for reduced conduction losses.
-
Low Switching Losses: Optimized for high-frequency operation.
-
Built-in NTC Thermistor: Enables thermal monitoring and protection.
-
Isolated Baseplate: Facilitates easy and safe heatsink assembly.
-
High Reliability: Industrial-grade robustness for long service life.
-
Low Thermal Impedance: Efficient heat dissipation capability.
Applications
-
Industrial Motor Drives: For controlling AC motors in pumps, fans, compressors, and conveyor systems.
-
Solar Inverters: Used in the power conversion stage of photovoltaic inverter systems.
-
Uninterruptible Power Supplies (UPS): Employed in the inverter section of high-capacity UPS systems.
-
Welding Equipment: Serves as the key switching component in industrial welding machines.
-
Induction Heating: Provides reliable power switching for induction heating systems.
Description
The BSM50GX120DN2 is a high-performance dual IGBT module designed for robust and efficient power conversion. Rated for 1200V and 50A, it serves as a reliable core component in medium-to-high power applications. The module is engineered with a low collector-emitter saturation voltage (VCE(sat)) and optimized for low switching losses, ensuring high overall system efficiency.
Key features include a built-in NTC thermistor for accurate temperature monitoring and an isolated baseplate that simplifies heatsink mounting and enhances electrical safety. Its industrial-grade construction guarantees high reliability and long-term stability, even in demanding operational environments.
