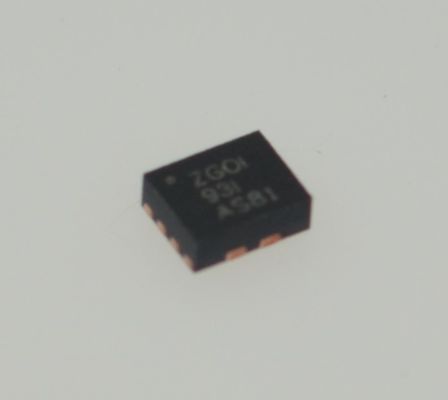

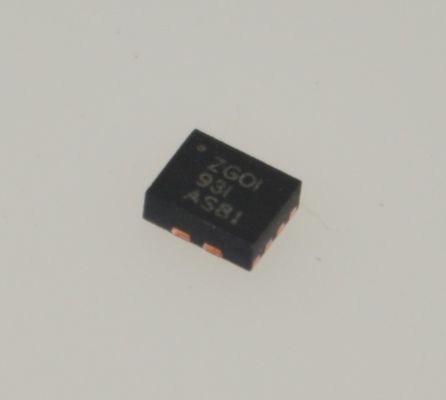

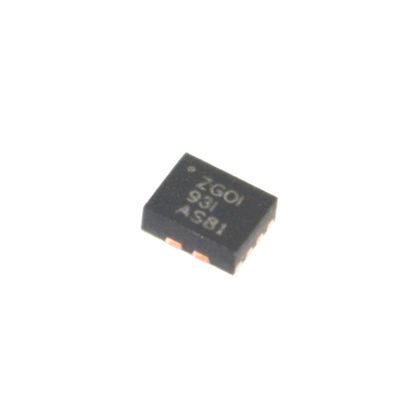

TPS61089RNRR 2.5A Boost Converter 2.5V-12V Input 95% Efficiency Ultra-Compact Low Ripple Programmable Full Protection Wide -40°C to 125°C Range

TPS61089RNRR 2.5A Boost Converter 2.5V-12V Input 95% Efficiency Ultra-Compact Low Ripple Programmable Full Protection Wide -40anddeg;C to 125anddeg;C Range

andnbsp;

Features

andbull; Input voltage range: 2.7 V to 12 V

andbull; Output voltage range: 4.5 V to 12.6 V

andbull; Up to 90% efficiency at VIN = 3.3 V, VOUT = 9 V, and IOUT = 2 A

andbull; Resistor-programmable peak current limit up to 10 A for high pulse current

andbull; Adjustable switching frequency: 200 kHz to 2.2 MHz

andbull; 4-ms built-in soft start time

andbull; PFM operation mode at light load (TPS61089)

andbull; Forced PWM operation mode at light load (TPS610891)

andbull; Internal output overvoltage protection at 13.2 V

andbull; Cycle-by-cycle overcurrent protection

andbull; Thermal shutdown

andbull; 2.00-mm andtimes; 2.50-mm VQFN HotRodandtrade; package

andnbsp;

Applications

andbull; Bluetoothandtrade; speaker

andbull; Quick charge power bank

andbull; Portable POS terminal

andnbsp;

Description

The TPS61089x represents the TPS61089 and the TPS610891. The TPS61089x is a fully-integrated synchronous boost converter with a 19-mandOmega; main power switch and a 27-mandOmega; rectifier switch. The device provides a high-efficiency and small-size powerandnbsp;solution for portable equipment. The TPS61089x features a wide input voltage range from 2.7 V to 12 V to support applications powered with single-cell or two-cell Lithium ion/polymer batteries. The TPS61089x has 7-A continuous switch current capability and provides output voltage up to 12.6 V.

The TPS61089x uses adaptive constant off-time peak current control topology to regulate the output voltage. In moderate to heavy load condition, the TPS61089x works in the pulse width modulation (PWM) mode. In light load condition, the TPS61089 works in the pulse frequency modulation (PFM) mode to improve the efficiency, while the TPS610891 still works in the PWM mode to avoid application problems caused by low switching frequency. The switching frequency in PWM mode is adjustable from 200 kHz to 2.2 MHz. The TPS61089x also implements a built-in 4-ms soft start function and an adjustable peak switch current limit function. In addition, the device provides 13.2-V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection.

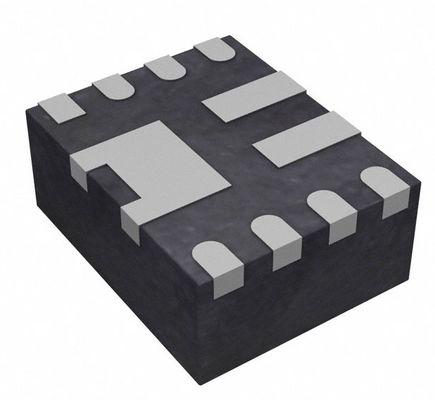

The TPS61089x is available in an extremely compact size of a 2.0-mm andtimes; 2.5-mm 11-pin VQFN package.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
