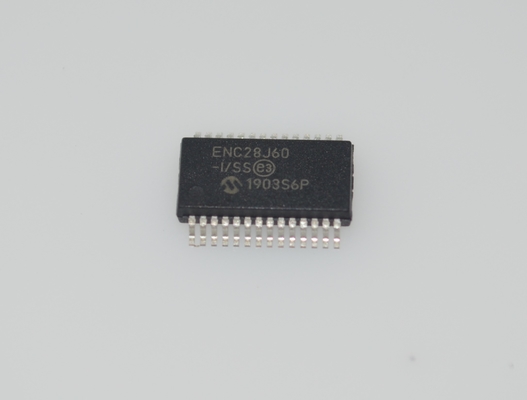

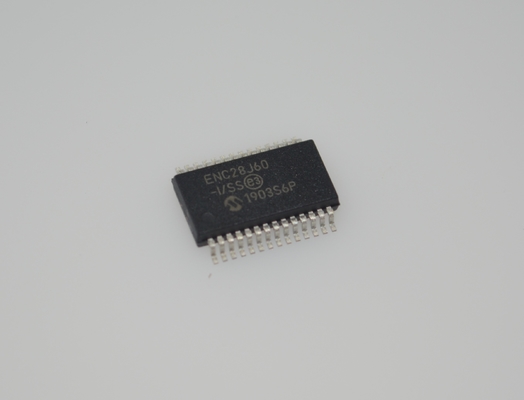

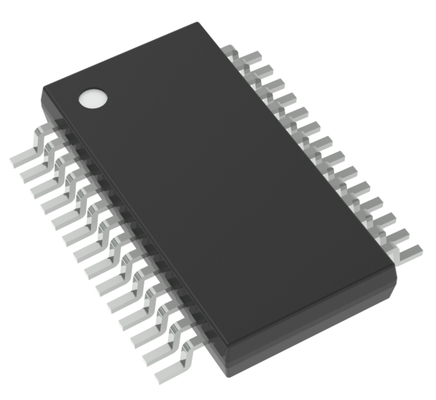

ENC28J60-I/SS Standalone Ethernet Controller 10Base-T SPI Interface 8KB Buffer 3.3V SSOP-28 -40°C to +85°C

ENC28J60-I

Ethernet Controller Features

• IEEE 802.3™ Compatible Ethernet Controller

• Fully Compatible with 10/100/1000Base-T Networks

• Integrated MAC and 10Base-T PHY

• Supports One 10Base-T Port with Automatic Polarity Detection and Correction

• Supports Full and Half-Duplex modes

• Programmable Automatic Retransmit on Collision

• Programmable Padding and CRC Generation

• Programmable Automatic Rejection of Erroneous Packets

• SPI Interface with Clock Speeds up to 20MHz

Buffer

• 8-Kbyte Transmit/Receive Packet Dual Port SRAM

• Configurable Transmit/Receive Buffer Size

• Hardware Managed Circular Receive FIFO

• Byte-Wide Random and Sequential Access with Auto-Increment

• Internal DMA for Fast Data Movement

• Hardware Assisted Checksum Calculation for Various Network Protocols

Medium Access Controller (MAC) Features

• Supports Unicast, Multicast and Broadcast Packets

• Programmable Receive Packet Filtering and Wake-up Host on Logical AND or OR of the Following:

- Unicast destination address

- Multicast address

- Broadcast address

- Magic Packet™

- Group destination addresses as defined by 64-bit Hash Table

- Programmable Pattern Matching of up to 64bytes at user-defined offset

Physical Layer (PHY) Features

• Loopback mode

• Two Programmable LED Outputs for LINK, TX, RX, Collision and Full/Half-Duplex Status Operational

• Six Interrupt Sources and One Interrupt Output Pin

• 25MHz Clock Input Requirement

• Clock Out Pin with Programmable Prescaler

• Operating Voltage of 3.1V to 3.6V (3.3V typical)

• 5V Tolerant Inputs

• Temperature Range: -40°C to +85°C Industrial, 0°C to +70°C Commercial (SSOP only)

• 28-Pin SPDIP, SSOP, SOIC, QFN Packages

INFORMATION

Drawing
